Product Model

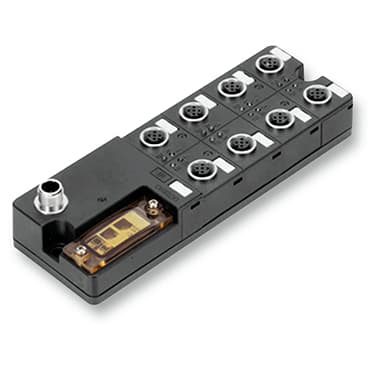

DRT2-OD08CL
Selling Points
- 1High-Performance Outputs: The DRT2-OD08CL features 8 PNP transistor outputs with a rated current of 0.5 A per point.
- 2IP67 Environmental Resistance: Designed with IP67 protection, ensuring high resistance to environments and harsh conditions.
- 3Easy Installation: Equipped with screw terminals for easy connection and mounting.
- 4Reliable Communication: Supports DeviceNet Slave communication for seamless integration into industrial control systems.
- 5Compact Design: Measuring 50 mm in height, 115 mm in width, and 49.7 mm in depth, making it a compact solution for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting | Panel Mount | Terminal Type | M12 Connector |
Input Voltage | 24 VDC | Output Type | DC NPN |
Number of Output Points | 8 | Number of Outputs Per Common | 8 |
Output Voltage | 24 VDC | Output Current Per Point | 0.5 A |
Output Current Per Common | 4.0 A | Output On Time | 0.5 ms |
Output Off Time | 1.5 ms |
Specifications may be subject to change without notice
