Product Model

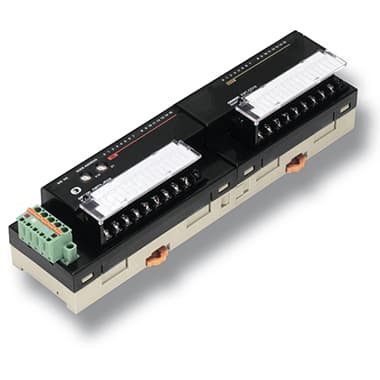

DRT2-OD32ML-1
Selling Points
- 1Compact Design: Very compact 16-/32-point remote terminals for space-efficient installations.
- 2High Reliability: Conforms to IEC61000-4-4, 2 kV (power line) noise immunity and 150m/s² shock resistance.
- 3Versatile Connectivity: MIL connector compatibility and 10-cm cable option for flexible installation.
- 4Efficient Power Supply: Supplied from the communications connector with a maximum current consumption of 70 mA at 24 VDC.
- 5Industrial-Grade Performance: Operating temperature range of -10°C to 55°C and humidity resistance up to 85% without condensation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input Off Time | 1.5 ms | Terminal Type | MIL Connector |
Output Type | DC PNP | Number of Output Points | 32 |
Number of Outputs Per Common | 16 | Output Voltage | 24 VDC |
Output Current Per Point | 300 mA | Output Current Per Common | 4.0 A |
Output On Time | 0.5 ms | Output Off Time | 1.5 ms |
Mounting | DIN Rail |
Specifications may be subject to change without notice
