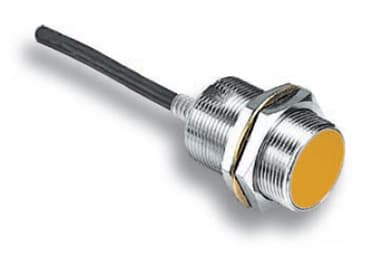

Product Model
E2E-X7D1-U 5M
Selling Points
- 1Advanced sensing distance up to 7 mm with ±10% accuracy.
- 2Shielded design for enhanced signal integrity and noise reduction.
- 3Compatible with DC 2-wire models, ensuring easy integration.
- 4Self-diagnostic output with 50 mA current for real-time monitoring.
- 5IP67 rating for waterproof and oil-proof protection in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Case material | Nickel-plated Brass | Operation | NO |
Output | 2 Wire DC | Shielded | Shielded |
Size | M18 | Sensing Distance | 7 mm |
Connection | PVC cable | Supply voltage | 12 to 24 VDC |
Threaded length (mm) | 38 | Overall length (mm) | 55 |
Mounting | Bracket with 18 mm mounting hole or M18x1 threaded hole. | Cable Length | 5 m |
Specifications may be subject to change without notice
