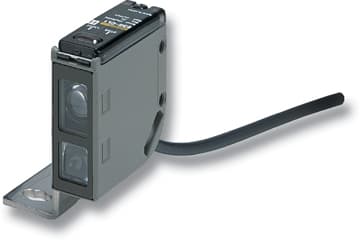

Product Model
E3S-CL1
Selling Points
- 1Adjustable Sensing Distance: Set the sensing distance from 5 to 200 mm for precise detection.
- 2Background Suppression: Eliminate background influences with a hysteresis of only 2% max.
- 3Stable Detection: Detect objects regardless of color, material, or size with stable detection.
- 4IP67 Protection: Ensure reliable operation in harsh environments with IP67 protection.
- 5Easy Installation: Includes mounting bracket and fasteners for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Body Type | Rectangular | Housing Material | Metal |
Operation | L-ON/D-ON selectable | Output | NPN/PNP Selectable |
Sensing Method | Distance-settable | Supply Voltage | 10 to 30 VDC |
Type | Water and Oil-resistant Distance Settable | Max Sensing Distance | 200 mm |
Connection | Pre-wired | Cable Length | 2 m |
Light Source | Red LED |
Specifications may be subject to change without notice
