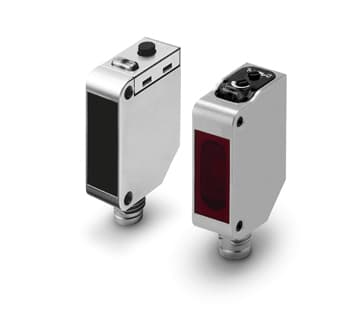

Product Model
E3ZM-B86T-C
Selling Points
- 1Detects transparent objects made of PET, resin, and glass with high accuracy.
- 2Equipped with a one-turn adjuster for easy and intuitive sensitivity adjustments.
- 3Offers robust protection against water ingress and aggressive chemicals with an IP69K rating.
- 4Compatible with a wide range of ambient temperatures from -40°C to 60°C.
- 5Features a red LED light source with a sensing distance of up to 500 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Body Type | Rectangular - Compact | Housing Material | Stainless Steel |
Light Source | Red LED | Max Sensing Distance | 0.5 m |
Operation | L-ON/D-ON selectable | Sensing Method | Retro-reflective |
Supply Voltage | 12 to 24 VDC | Cable Length | 2 m |
Output | PNP | Connection | M8 4-pin connector |
Specifications may be subject to change without notice
