Product Model

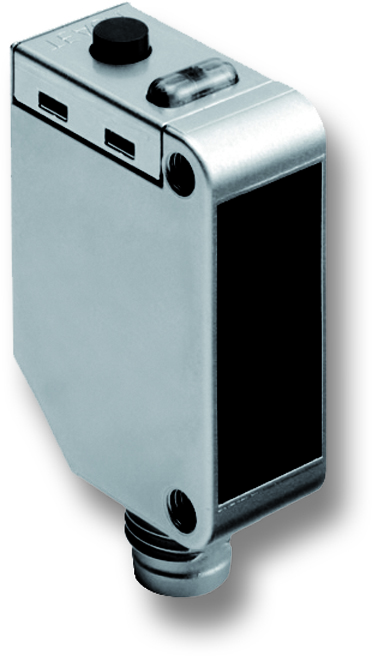

E3ZM-V61 2M
Selling Points
- 1Compact Design: The E3ZM-V61 2M features a space-saving design with a SUS316L stainless steel housing, reducing volume by 90% compared to conventional mark sensors.
- 2Durable Construction: Constructed with corrosion-resistant SUS316L and PES materials, ensuring water and detergent resistance for long sensor lifetime in often cleaned environments.
- 3RGB Signal Processing: Equipped with RGB signal processing and a white LED, providing stable detection of differently colored print marks with a fast response time of 50 µs.
- 4Easy Teaching Options: Offers both 2-point teaching (manual) and automatic teaching (remote) for easy setting and adjustment.
- 5IP69K Protection: Withstands high-temperature, high-pressure water washing and meets IP69K degree of protection, ensuring reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Body Type | Rectangular - Compact | Housing Material | Stainless Steel |
Light Source | White LED | Max Sensing Distance | 14 mm |
Operation | L-ON/D-ON selectable | Sensing Method | Diffuse-reflective |
Supply Voltage | 12 to 24 VDC | Type | Print Mark Detection |
Output | NPN | Connection | Pre-wired |
Cable Length | 2 m |
Specifications may be subject to change without notice
