Product Model
3HAC022307-022
Selling Points
- 1Modular Design: Step-by-step expansion for flexible system configuration.
- 2Easy Installation: Simple DIN-rail attachment/detachment using a unique slide and lock mechanism.
- 3Fast Troubleshooting: Unit/channel LEDs for quick issue identification and resolution.
- 4IP20 Class Protection: No requirement for enclosures due to low unit heat dissipation.
- 5Multi-Protocol Connectivity: Supports up to 192 I/O signals via Electrical ModuleBus and more via Optical ModuleBus, PROFIBUS DP, FOUNDATION Fieldbus, and others.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Customs Tariff Number | 73269098 | Part Type | New |
WEEE Category | Product Not in WEEE Scope | Product Net Weight | 1.52 kg |
Gross Weight | 1.52 kg | Product Net Depth / Length | 245 mm |
Product Net Height | 50 mm | Product Net Width | 205 mm |

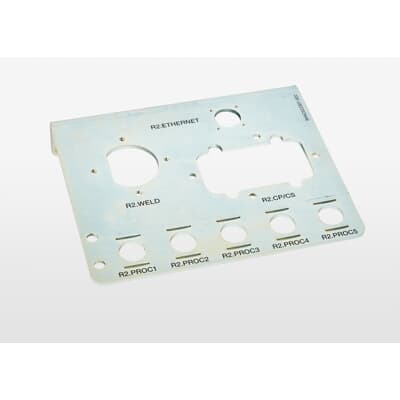

Frame Size | Spare_Parts | Product Name | Connect. plate ax.3 proc |
ABB Type Designation | - | Manufacturer ID | 3HAC022307-022 |
Specifications may be subject to change without notice
