Product Model

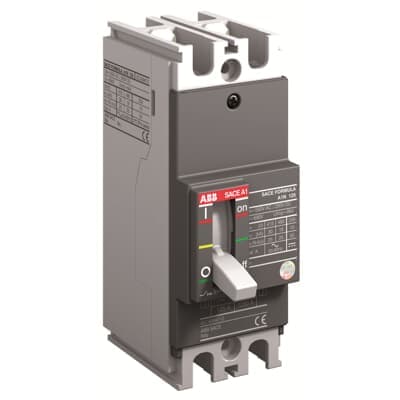

A1A 100 TMF 100-1000 2p UL 2 Lug?Top
Selling Points
- 1High interrupting ratings up to 10 kA at 240 V.
- 2Thermal-magnetic trip unit for precise current control.
- 3DIN rail mounting for easy installation and space efficiency.
- 4Meets UL 489 and CSA C22.2 standards for safety and reliability.
- 5Available in 2-pole configuration with top lugs for versatile applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 1SDL000183R0001 9AKK108467A6707 | Product Net Width | 50.8 mm |
Product Net Height | 60 mm | Product Net Depth / Length | 60 mm |
Product Net Weight | 0.5 kg | Product Main Type | SACE FORMULA |
Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
Version | F | Number of Poles | 2P |
Rated Current (In) | 100 A | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
Rated Insulation Voltage (Ui) | 690 V | Rated Operational Voltage | 240 V AC 250 V DC |
Rated Uninterrupted Current (Iu) | 100 A | Release | TMF |
Release Type | TM | Short-Circuit Performance Level | A |
Standards | UL | Terminal Connection Type | Front for Copper-Aluminium Cables |
Interrupting Rating acc. to UL489 | (240 V AC) 10 kA (250 V DC) 2 Poles in Series 5 kA | ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 | Manufacturer ID | 1SDA117234R1 |
