Product Model

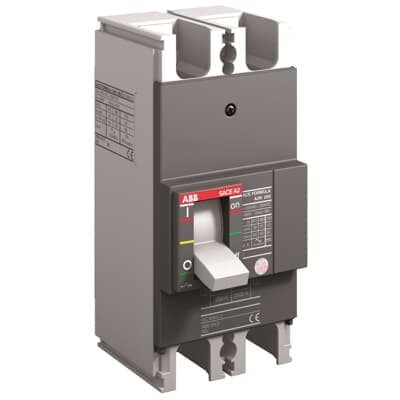

A2N 250 TMF 200-2000 2p F F
Selling Points
- 1High Interruption Rating: 25 kA interruption rating ensures reliable protection against short circuits.
- 2Compliant with UL Standards: Meets UL standards for safety and performance.
- 3Thermal-Magnetic Release: TMF release type provides thermal and magnetic protection.
- 4Front Terminal Connection: Easy front terminal connection for straightforward installation.
- 5Low Voltage Protection: Suitable for low voltage applications up to 250 V DC and 240 V AC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 1SDL000183R0001 9AKK108467A6707 | Product Net Width | 70 mm |
Product Net Height | 150 mm | Product Net Depth / Length | 60 mm |
Product Net Weight | 0.9 kg | Product Main Type | SACE FORMULA |
Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
Version | F | Electrical Durability | 4000 cycle |
Mechanical Durability | 10000 cycle | Number of Poles | 2P |
Opening Time | CB with SOR 15 ms CB with UVR 15 ms | Power Loss | at Rated Operating Conditions per Pole 12 W |
Rated Current (In) | Main Circuit 200 A | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
Rated Insulation Voltage (Ui) | 690 V | Rated Operational Voltage | 550 V AC 250 V DC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (240 V AC) 25 kA (380 V AC) 18 kA (415 V AC) 18 kA (440 V AC) 12.5 kA (480 V AC) 9 kA (500 V AC) 5 kA (250 V DC) 2 Poles in Series 5 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (240 V AC) 50 kA (380 V AC) 36 kA (415 V AC) 36 kA (440 V AC) 25 kA (480 V AC) 18 kA (500 V AC) 10 kA (250 V DC) 2 Poles in Series 10 kA |
Rated Uninterrupted Current (Iu) | 250 A | Release | TMF |
Release Type | TM | Short-Circuit Performance Level | N |
Standards | IEC | Sub-type | A2 |
Terminal Connection Type | Front | ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27370409 |
Manufacturer ID | 1SDA066545R1 |
