Product Model

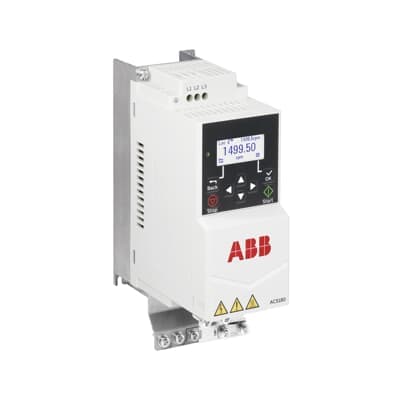

ACS180-04S-02A4-1
Selling Points
- 1High Efficiency: Achieves 98% efficiency at nominal power.
- 2Versatile Motor Control: Supports sensorless vector control for precise torque control.
- 3Compact Design: Reduces cabinet size with built-in EMC filter and STO.
- 4Reliable Performance: Designed for heavy-duty use with robust and reliable design.
- 5Easy Installation: Features intuitive graphical user interface and simple parameter structure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 0.92 kg | Product Net Depth / Length | 143 mm |
Product Net Height | 209 mm | Product Net Width | 70 mm |
Package Level 1 Depth / Length | 225 mm | Package Level 1 Height | 115 mm |
Package Level 1 Width | 220 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R0 | Input Voltage (Uin) | 200 ⦠240 V |
Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 1.8 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 2.3 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 2.4 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 0.25 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 0.37 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 0.37 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Product Name | FREQUENCY CONVERTER | Manufacturer ID | 3AXD50000662500 |
Specifications may be subject to change without notice
