Product Model

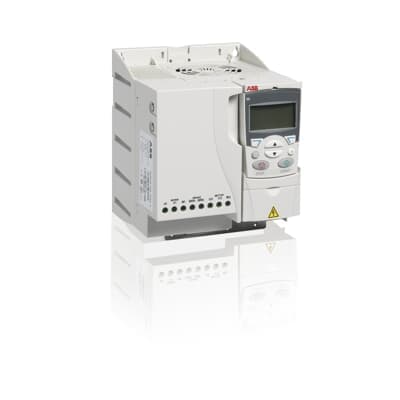

ACS310-03U-17A2-4
Selling Points
- 1Efficient Motor Control: Optimized for pump and fan applications with advanced control panels.
- 2Energy Efficiency: Includes energy efficiency calculators and an energy optimizer.
- 3Modbus Compatibility: Embedded Modbus EIA-485 fieldbus interface for seamless integration.
- 4Unified Design: Unified height and depth for easy installation and maintenance.
- 5High Output Current: Full output current at 50°C ambient temperature for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 6.4 lb | Product Net Depth / Length | 6.65 in |
Product Net Height | 9.29 in | Product Net Width | 6.65 in |
Number of Phases | 3 | Degree of Protection | IP20 |
Frequency (f) | 50/60 Hz | Frame Size | R3 |
Input Voltage (Uin) | 380 ... 480 V | Mounting Type | Wall-mounting |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 17.2 A | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 10 Hp |
Apparent Power Output | 14 kV·A | Efficiency Level | IE2 |
Standby Loss | 11 W | Temperature Rating | Maximum 40 °C |
eClass | ETIM 7 | UNSPSC | 39122001 |
SCIP | e6d5d8a1-6fda-4f06-be32-c8f10666cd62 Finland (FI) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Product Name | AC Drive | Manufacturer ID | 3AUA0000049489 |
Specifications may be subject to change without notice
