Product Model

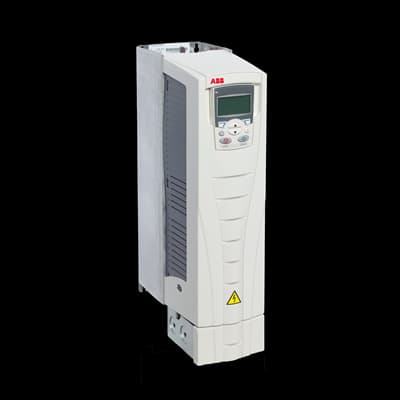

ACS510-01-025A-4
Selling Points
- 1Advanced variable frequency drive for efficient motor control in various industrial applications.
- 2Reliable and energy-efficient with a power rating of 11 kW (15 HP) and 380-480 V power supply.
- 3Precise speed and torque control through advanced scalar control algorithm, enhancing process accuracy and reducing mechanical stress.
- 4Versatile solution for pumps, fans, compressors, conveyors, and mixers with built-in energy optimization functions.
- 5User-friendly interface with intuitive keypad and clear LCD for straightforward programming and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 8.8 kg | Product Net Depth / Length | 565 mm |
Product Net Height | 365 mm | Product Net Width | 225 mm |
Package Level 1 Depth / Length | 580 mm | Package Level 1 Height | 400 mm |
Package Level 1 Width | 250 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R2 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 25 A |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 11 kW | Apparent Power Output | 17 kV·A |
Efficiency Level | IE2 | Standby Loss | 13 W |
Temperature Rating | 40 °C | UNSPSC | 39122001 |
WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
Manufacturer ID | 3ABD00015748-D |
Specifications may be subject to change without notice
