Product Model

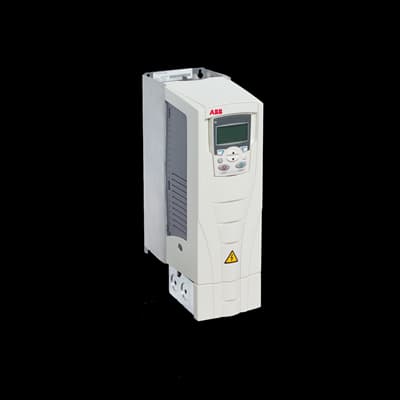

ACS510-01-07A2-4
Selling Points
- 1High Efficiency (IE2) for optimal power usage.
- 2Reliable Performance with 3 kW output power.
- 3Robust Protection with IP21 degree of protection.
- 4Versatile Mounting Type: Wall-mounted for easy installation.
- 512-Month Warranty for peace of mind and long-term reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 6.1 kg | Product Net Depth / Length | 465 mm |
Product Net Height | 365 mm | Product Net Width | 225 mm |
Package Level 1 Depth / Length | 490 mm | Package Level 1 Height | 400 mm |
Package Level 1 Width | 240 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R1 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 7.2 A |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 3 kW | Apparent Power Output | 5.0 kV·A |
Efficiency Level | IE2 | Standby Loss | 11 W |
Temperature Rating | 40 °C | UNSPSC | 39122001 |
WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
Manufacturer ID | 3ABD00015744-D |
Specifications may be subject to change without notice
