Product Model

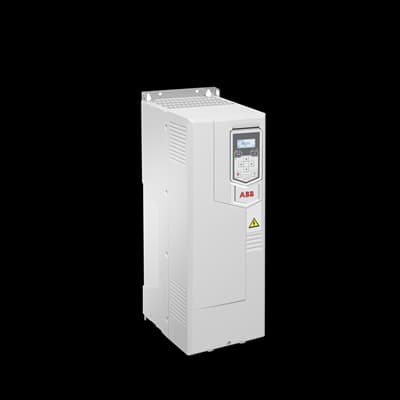

ACS530-01-062A-4
Selling Points
- 1Equipped with STO (Safe Torque Off) function, ensuring the safety of equipment and personnel.
- 2Optimized for energy savings through built-in energy optimization functions and IE2 Efficiency level.
- 3Designed for harsh environments with enhanced coating and independent air ducts for stable operation.
- 4Suitable for various industries including textile, food and beverage, and HVAC systems.
- 5Features a standard graphical interface control panel for simple commissioning and troubleshooting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 18.5 kg | Product Net Depth / Length | 257 mm |
Product Net Height | 636 mm | Product Net Width | 203 mm |
Package Level 1 Depth / Length | 720 mm | Package Level 1 Height | 380 mm |
Package Level 1 Width | 300 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R4 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 58 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 62 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 30 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 30 kW | Apparent Power Output | 43.0 kV·A |
Efficiency Level | IE2 | Standby Loss | 19 W |
Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
Manufacturer ID | 3ABD00039811-D |
Specifications may be subject to change without notice
