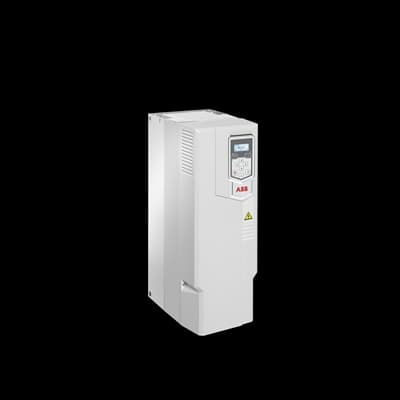

Product Model
ACS530-01-088A-4
Selling Points
- 1Easy-to-use graphical interface simplifies commissioning and operation.
- 2Ensures safety of equipment and personnel with SIL3 compliance.
- 3Built-in interface for seamless integration into automation networks.
- 4Enhanced coating and independent air ducts ensure stable operation in harsh environments.
- 5Optimized pump and fan control reduce energy consumption and save costs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 26.5 kg | Product Net Depth / Length | 295 mm |
Product Net Height | 596 mm | Product Net Width | 203 mm |
Package Level 1 Depth / Length | 830 mm | Package Level 1 Height | 510 mm |
Package Level 1 Width | 280 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R5 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 82.7 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 88 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 45 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 45 kW | Apparent Power Output | 61.0 kV·A |
Efficiency Level | IE2 | Standby Loss | 21 W |
Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
Manufacturer ID | 3ABD00039813-D |
Specifications may be subject to change without notice
