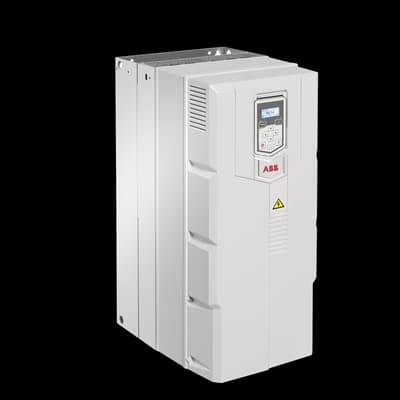

Product Model
ACS530-01-246A-4
Selling Points
- 1132 kW, 246A continuous current rating.
- 2Ensures safety of equipment and personnel with EU safety standards compliance.
- 3Built-in energy saving calculator helps reduce energy consumption and save costs.
- 4Easily integrates with automation networks for seamless connectivity.
- 5Facilitates easy installation and reduces installation space requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 62.8 kg | Product Net Depth / Length | 393 mm |
Product Net Height | 680 mm | Product Net Width | 300 mm |
Package Level 1 Depth / Length | 1160 mm | Package Level 1 Height | 650 mm |
Package Level 1 Width | 490 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R8 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 234 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 246 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 132 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 132 kW | Apparent Power Output | 170.0 kV·A |
Efficiency Level | IE2 | Standby Loss | 47 W |
Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
Manufacturer ID | 3ABD00039818-D |
Specifications may be subject to change without notice
