Product Model

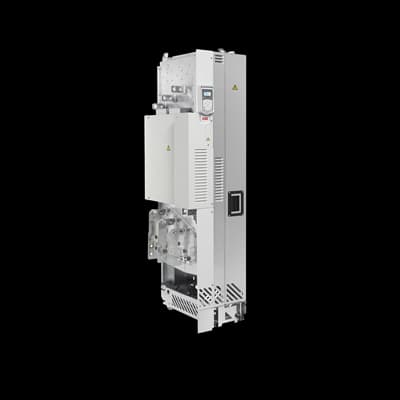

ACS530-04-505A-4
Selling Points
- 1Compact design for reliable operation in harsh environments.
- 2Built-in functions like AC choke, EMC filter, and Modbus RTU interface simplify drive selection and reduce costs.
- 3Energy efficiency control reduces energy consumption and saves costs throughout the entire life cycle.
- 4Compliance with Ecodesign regulations and meets IE2 energy efficiency level.
- 5Safe Torque Off (STO) function ensures safety of equipment and personnel, meeting EU safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 161 kg | Product Net Depth / Length | 529 mm |
Product Net Height | 1462 mm | Product Net Width | 350 mm |
Package Level 1 Depth / Length | 2050 mm | Package Level 1 Height | 500 mm |
Package Level 1 Width | 645 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP00 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R10 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Cabinet-built_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 485 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 505 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 250 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 250 kW | Apparent Power Output | 350 kV·A |
Efficiency Level | IE2 | Standby Loss | 396 W |
Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency Converter |
Manufacturer ID | 3ABD00050302-D |
Specifications may be subject to change without notice
