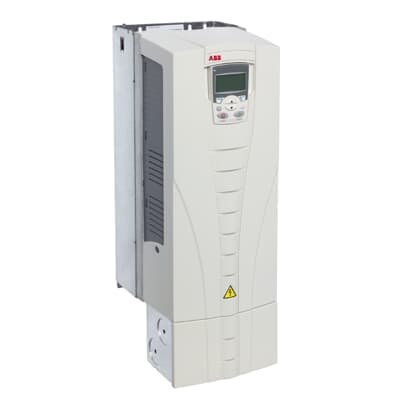

Product Model
ACS550-01-031A-4
Selling Points
- 1Advanced Direct Torque Control (DTC) for precise motor control.
- 2Robust construction with NEMA 1 enclosure for harsh environments.
- 3Compatible with 3-phase input and output, suitable for various industrial applications.
- 4Built-in counters for easy monitoring of energy savings and carbon dioxide emissions.
- 5Plug-and-play convenience with no customizing or special product engineering required.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 18 kg | Product Net Depth / Length | 675 mm |
Product Net Height | 384 mm | Product Net Width | 284 mm |
Package Level 1 Depth / Length | 700 mm | Package Level 1 Height | 400 mm |
Package Level 1 Width | 290 mm | Number of Phases | 3 |
Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
Frequency (f) | 47.5 ... 63 Hz | Frame Size | R3 |
Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 23 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 31 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 11 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 15 kW |
Efficiency Level | IE2 | UNSPSC | 39122001 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency Converter |
Manufacturer ID | 3AUA0000002418-D |
Specifications may be subject to change without notice
