Product Model

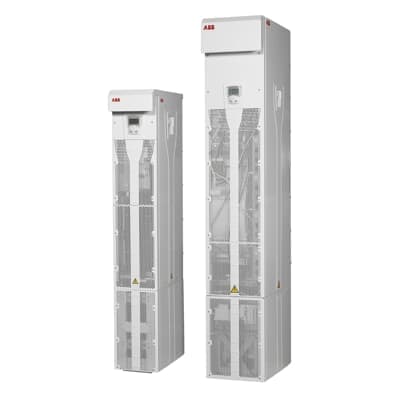

ACS550-02-245A-4
Selling Points
- 1The ABB ACS550-02-245A-4 drive optimizes power consumption, reducing energy costs and enhancing overall system efficiency.
- 2Designed for 200 to 240V and 380 to 480V, it supports a wide range of power ratings from 0.75 to 355 kW.
- 3Equipped with an advanced control panel, ensuring precise control and monitoring of the drive's performance.
- 4Features a compact design, ideal for space-constrained applications without compromising on performance.
- 5Built with robust components, ensuring reliable operation under various load conditions and environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 124 kg | Product Net Depth / Length | 520 mm |
Product Net Height | 1507 mm | Product Net Width | 250 mm |
Number of Phases | 3 phase | Frequency (f) | 48 ... 63 Hz |
Frame Size | R7 | Input Voltage (Uin) | 380 ... 480 V |
Mounting Type | Free standing units | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 192 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 245 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 110 kW 150 Hp |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 132 kW 200 Hp | UNSPSC | 39120000 39122001 |
WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency converter |
Manufacturer ID | 64727010 |
Specifications may be subject to change without notice
