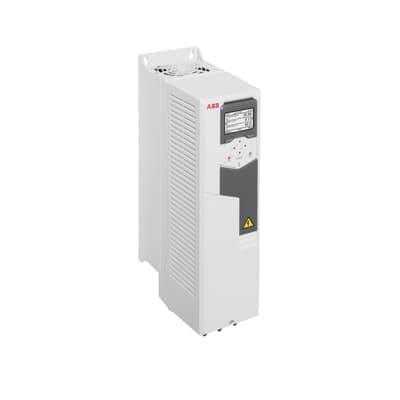

Product Model
ACS580-01-018A-4
Selling Points
- 1Versatile Application: Controls compressors, conveyors, pumps, and more in various industries.
- 2Effortless Setup: Straightforward settings menu and assistants for fast commissioning and maintenance.
- 3Robust Design: Rugged and robust design suitable for diverse environments, including IP21 enclosure.
- 4High Efficiency: IE2 efficiency level ensures energy savings across a broad range of applications.
- 5Customizable Control: Analog inputs/output and digital inputs/outputs for comprehensive process management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 9 kg | Product Net Depth / Length | 227 mm |
Product Net Height | 394 mm | Product Net Width | 125 mm |
Package Level 1 Depth / Length | 320 mm | Package Level 1 Height | 630 mm |
Package Level 1 Width | 220 mm | Package Level 1 Units | 0 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R2 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 12.6 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 16.2 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 17 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 5.5 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 7.5 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 7.5 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD50000038959 |
Specifications may be subject to change without notice
