Product Model

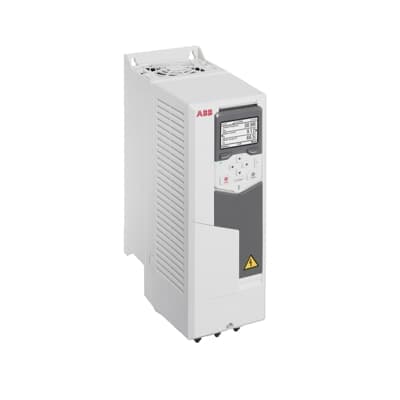

ACS580-01-12A7-4
Selling Points
- 1Versatile Application: Suitable for pumps, fans, and general-purpose applications.
- 2Built-in Assistants: Simplifies drive selection and commissioning with intuitive settings menu.
- 3Robust Design: Rugged and robust for various environments, including harsh industrial settings.
- 4Efficient Performance: Offers high efficiency with IE2 rating and low standby loss.
- 5Easy Maintenance: Equipped with PC tool and control panel for extensive drive monitoring and process tuning.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 4.6 kg | Product Net Depth / Length | 223 mm |
Product Net Height | 303 mm | Product Net Width | 125 mm |
Package Level 1 Units | 0 carton | Number of Phases | 3 |
Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
Frequency (f) | 47.5 ... 63 Hz | Frame Size | R1 |
Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 9.4 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 12 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 12.6 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 4 kW |
Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 5.5 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 5.5 kW |
Efficiency Level | IE2 | UNSPSC | 39122001 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency Converter |
Manufacturer ID | 3ABD50000038953 |
Specifications may be subject to change without notice
