Product Model

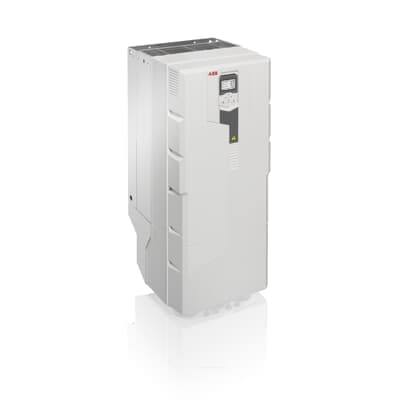

ACS580-01-363A-4
Selling Points
- 1Effortless Energy Efficiency: Optimizes energy yields with straightforward setup and commissioning.
- 2Versatile Applications: Controls compressors, conveyors, pumps, fans, and other variable and constant torque applications.
- 3Built-in Features: Includes RFI filter, Modbus RTU fieldbus interface, and Safe Torque Off (STO) input for simplified drive selection and operation.
- 4Easy Installation: Plug-in ready with a straightforward settings menu and assistants for fast commissioning.
- 5Wide Industry Compatibility: Suitable for various light industries including food and beverage, plastic, textile, material handling, and agriculture.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 98 kg | Product Net Depth / Length | 418 mm |
Product Net Height | 955 mm | Product Net Width | 380 mm |
Package Level 1 Depth / Length | 650 mm | Package Level 1 Height | 1160 mm |
Package Level 1 Width | 490 mm | Package Level 1 Units | 0 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R9 | Input Voltage (Uin) | 380 ⦠480 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 293 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 345 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 363 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 160 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 200 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 200 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00037932-D |
Specifications may be subject to change without notice
