Product Model

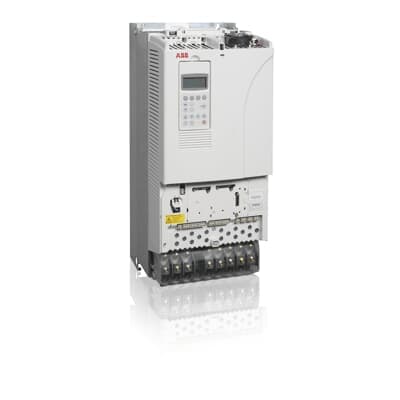

ACS800-04-0040-5
Selling Points
- 1High output power of 30 kW for efficient motor control.
- 2Robust design suitable for heavy-duty industrial use.
- 3Compact dimensions of 490 mm x 253 mm x 240 mm for space-saving installations.
- 4Wide input voltage range of 380 to 500 V for versatile applications.
- 5Advanced thermal model for high overloadability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 24 kg | Product Net Depth / Length | 253 mm |
Product Net Height | 490 mm | Product Net Width | 240 mm |
Number of Phases | 3 | Frequency (f) | 48 ... 63 Hz |
Frame Size | R4 | Input Voltage (Uin) | 380 ... 500 V |
Mounting Type | Module for cabinet assembly | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 36 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 44 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 48 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 22 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 30 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 30 kW | Apparent Power Output | 42 kV·A |
Efficiency Level | IE2 | Standby Loss | 53 W |
Temperature Rating | Maximum 50 °C | UNSPSC | 39122001 |
SCIP | e550f262-cea9-43a6-bbb7-76ebc5b9dc70 Finland (FI) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 68365554 |
Specifications may be subject to change without notice
