Product Model

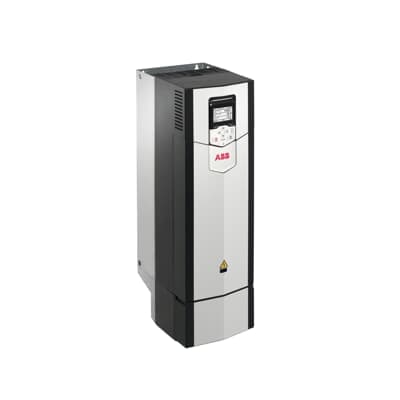

ACS880-01-065A-5
Selling Points
- 1Compact Design for Easy Installation: The ACS880-01-065A-5 AC Drive boasts a compact design that simplifies installation, commissioning, and maintenance.
- 2Integrated Safety Features: Equipped with safe torque off (STO) as standard and optional safety functions module (TUV Nord certificate), ensuring enhanced safety in industrial settings.
- 3Versatile Motor Support: Compatible with various motor types, including synchronous reluctance motors, offering flexibility in motor selection.
- 4Intuitive Control Panel: Features a user-friendly control panel with USB connection and removable memory unit for easy maintenance and configuration.
- 5Advanced Commissioning Tools: Includes the Drive Composer PC tool for seamless commissioning and configuration, aligning with the primary control program used in the ACS580 drive series.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 23 kg | Product Net Depth / Length | 274 mm |
Product Net Height | 730 mm | Product Net Width | 203 mm |
Package Level 1 Depth / Length | 830 mm | Package Level 1 Height | 510 mm |
Package Level 1 Width | 280 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP21 |
Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R5 | Input Voltage (Uin) | 380 ⦠500 V |
Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 52 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 62 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 65 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 30 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 37 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 37 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00037853-D |
Specifications may be subject to change without notice
