Product Model

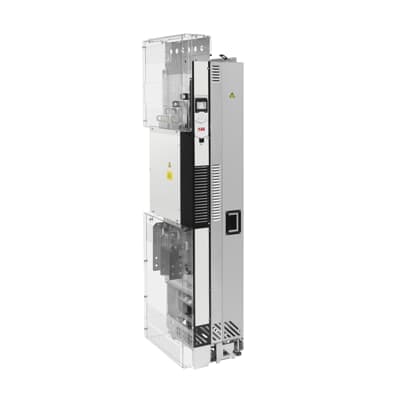

ACS880-04-721A-7
Selling Points
- 1High power ratings: 275 to 2500 HP (200 to 2400 kW) for demanding applications.
- 2Direct Torque Control (DTC) for precise speed and torque control.
- 3Built-in harmonic filtering and regenerative capabilities for efficient operation.
- 4Global compatibility with various certifications (CE, UL, cUL, CSA, marine certifications, ATEX).
- 5Robust design with coated circuit boards and a nine-year maintenance interval for reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 199 kg | Product Net Depth / Length | 506 mm |
Product Net Height | 1741 mm | Product Net Width | 350 mm |
Package Level 1 Depth / Length | 2050 mm | Package Level 1 Height | 690 mm |
Package Level 1 Width | 645 mm | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
Frame Size | R11 | Input Voltage (Uin) | 525 ⦠690 V |
Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 571 A |
Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 705 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 721 A |
Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 560 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 630 kW |
Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 710 kW | Efficiency Level | IE2 |
UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
Product Name | Frequency Converter | Manufacturer ID | 3ABD00039571-D |
Specifications may be subject to change without notice
