Product Model

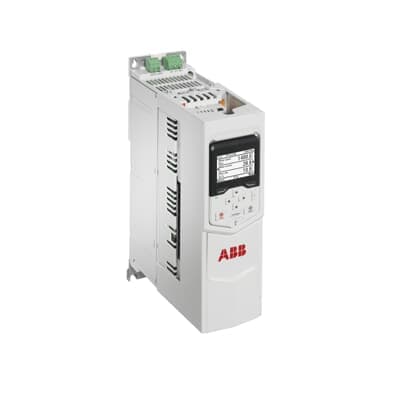

ACS880-M04-03A6-2
Selling Points
- 1High-Performance Variable Speed Control: Precise control of motor speed and torque for demanding applications.
- 2Advanced Safety Features: Built-in Safe Torque Off (STO) and optional safety functions module for enhanced application safety.
- 3Adaptable Installation: Four frame sizes (R1 to R4) with three option slots for flexible installation and commissioning.
- 4Wide Voltage Range Compatibility: Operates with input voltages 200Vac-240Vac (208Vac / 220Vac / 230Vac) for versatility in various industries.
- 5Integrated Diagnostic Capabilities: Energy efficiency calculators and Drive composer PC tool for easy commissioning and configuration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 3.4 kg 7.5 lb | Product Net Depth / Length | 157 mm 6.18 in |
Product Net Height | 474 mm 18.66 in | Product Net Width | 90 mm 3.54 in |
Package Level 1 Depth / Length | 430 mm 16.93 in | Package Level 1 Height | 280 mm 11.02 in |
Package Level 1 Width | 190 mm 7.48 in | Package Level 1 Units | 1 carton |
Number of Phases | 3 | Degree of Protection | IP20 |
Enclosure Type NEMA | Open Type | Altitude | 1000 m |
Operating Humidity (RH<span style="font-size:x-small;">amb</span>) | 5 ... 95 | Power Factor | 0.98 |
Sound dB (A) | 47 dB(A) | Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
Frequency (f) | 47.5 ... 63 Hz | Frame Size | R1 |
Input Voltage (Uin) | 200 ... 240 V | Mounting Type | Module |
Communication Protocol | CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIsafe PROFIBUS PROFINET IO TCP/IP | Number of Hardware Interfaces | Industrial Ethernet 0 Other 3 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 0 |
Includes | PC connection | Analog Inputs | 2 |
Analog Outputs | 2 | Number of Digital In/Outputs | 6 / 5 |
Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 3 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 3.4 A |
Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 3.6 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 0.37 kW |
Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 0.55 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 0.55 kW |
Apparent Power Output | 1.4 kV·A | Efficiency Level | IE2 |
Standby Loss | 28 W | Temperature Rating | Maximum 40 °C |
Output Current, Heavy-Duty Use (UL) | 3 A | Output Current, Light-Overload Use (UL) | 3.4 A |
Output Power, Heavy-Duty Use (UL) | 0.5 Hp | Output Power, Light-Overload Use (UL) | 0.75 Hp |
UNSPSC | 39122001 | SCIP | 8a7e10d7-3960-4da3-8cd8-3a7488ee171b Finland (FI) |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency converter |
Manufacturer ID | 3AXD50000036385 |
Specifications may be subject to change without notice
