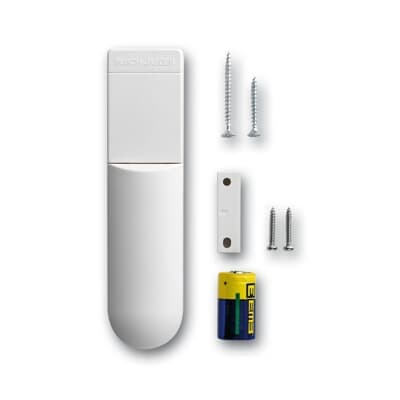

Product Model
BI-S-1-64-WL
Selling Points
- 1Wireless connectivity for seamless integration with ABB-free@home systems.
- 2Detects the state of dormer windows, skylights, doors, and gates.
- 3Includes an additional connection option for external sensors.
- 4Supports isolated evaluation and monitoring of channels.
- 5Battery-operated with a typical service life of 3 years.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ambient Air Temperature | Operation -5 ... +50 °C | Degree of Protection | IP43 |
Number of Digital Inputs | 1 | Compatible Bus Systems | free@home wireless |
Product Range | free@home | Connection Type | Wireless |
Battery Chemical Composition | Lithium | Battery Type | Portable |
Battery Weight | 11 g | Number of Batteries | 1 |
Product Net Weight | 0.18 kg | ETIM 9 | EC000926 - Physical sensor for bus system |
eClass | V11.0 : 27143137 | UNSPSC | 39121801 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
Manufacturer ID | 2CKA006200A0102 |
Specifications may be subject to change without notice
