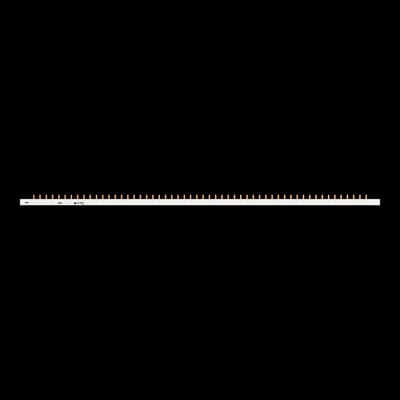

Product Model
BR-S 4/54/16
Selling Points
- 1Enhanced Safety Features: Designed with automatic tripping functionality to prevent electrical hazards.
- 2Versatile Compatibility: Compatible with MCBs S200 series, S300P, SN201, RCDs F200, DS200, and more.
- 3Durable Construction: Built to withstand overvoltage and short-circuit conditions with a rated impuls withstand voltage of 4 kV.
- 4Easy Installation: Simple mounting process with a tightening torque of 1.2 Nm for secure connections.
- 5Long-Lasting Performance: Meets mechanical service life standards with up to 10,000 operations without failure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Operational Voltage | 400 V | Rated Conditional Short-Circuit Current (Inc) | 25 kA |
Rated Uninterrupted Current (Iu) | 80 A | Pitch | 17.8 |
Number of Poles | 4 | Number of Phases | 4 |
Connection Type | Pin | Number of Batteries | 0 |
Rated Cross-Section | 16 mm² | Width in Number of Modular Spacings | 54.0 |
Product Net Width | 0.03 mm | Product Net Height | 0.021 mm |
Product Net Depth / Length | 1016 mm | Product Net Weight | 0.241 kg |
ETIM 8 | EC000215 - Phase busbar | ETIM 9 | EC000215 - Phase busbar |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 8538 90 99 | UNSPSC | 39121614 |
eClass | V11.0 : 27142207 | Manufacturer ID | 2CDL844001R1654 |
Specifications may be subject to change without notice
