Product Model

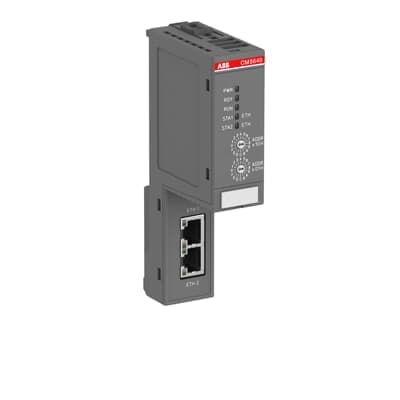

CM5640-2ETH
Selling Points
- 1Dual Ethernet Ports: Supports two independent Ethernet ports for robust network connectivity.
- 2High-Speed Data Transfer: Transfers data at speeds of up to 100 Mbps per Ethernet port.
- 3Industrial Protocol Support: Compatible with Modbus TCP, PROFINET, and EtherNet/IP protocols.
- 4Compact Design: Compact dimensions for space-saving installation on DIN rail.
- 5Durable and Reliable: Operates in a wide temperature range (-25°C to +60°C) and is resistant to humidity and vibrations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 0.101 kg | Product Net Depth / Length | 62 mm |
Product Net Height | 135 mm | Product Net Width | 28 mm |
Gross Weight | 0.134 kg | Package Level 1 Depth / Length | 147 mm |
Package Level 1 Height | 40 mm | Package Level 1 Width | 78 mm |
Package Level 1 Units | 1 carton | Function | Protocols: TCP/P, UDP, Modbus TCP |
Communication Interface | Serial | Number of Hardware Interfaces | Industrial Ethernet 2 Other 0 Parallel 0 RS-232 0 RS-422 0 RS-485 0 Serial TTY 0 USB 0 Wireless 0 |
Data Transmission Rate | 100000 kbit/s | Product Main Type | CM5640 |
Product Name | Distributed Automation PLCs | eClass | 27-24-22-08 |
ETIM 8 | EC001423 - PLC communication module | UNSPSC | 32151705 |
SCIP | 4fceac28-c94c-4f15-bba0-6ee24b1d48e2 Germany (DE) | WEEE B2C / B2B | Business To Business |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP176000R0080 |
Specifications may be subject to change without notice
