Product Model

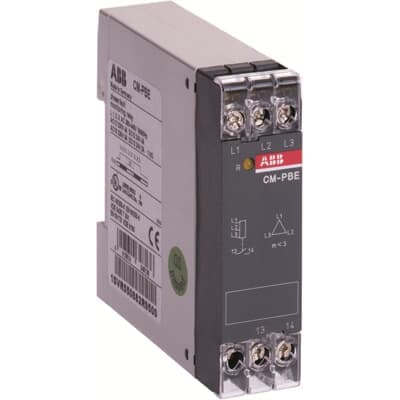

CM-PBE
Selling Points
- 1Reliable Phase Failure Detection: Monitors phase parameter phase failure in three-phase mains.
- 2Neutral Monitoring Capability: Also suitable for monitoring single-phase mains with neutral connection.
- 3Compact Design: 25 mm width, DIN rail mounting, and screw terminal connections.
- 4Advanced Indication: Yellow LED for operational state indication and fault messages.
- 5High Performance: 150 ms tripping delay and 500 ms startup delay for precise timing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 22.5 mm | Product Net Height | 78 mm |
Product Net Depth / Length | 78.5 mm | Product Net Weight | 0.066 kg |
Function | Phase failure detection | Sub-Function | Phase loss |
Measuring Range | (L-L) 380 ... 440 V AC | Time Range | 500 ms start-up delay 150 ms tripping delay |
Rated Control Supply Voltage (Us) | (L-L) 380 ... 440 V AC | Rated Frequency (f) | Supply Circuit 50/60 Hz |
Output | 1 n/o contact | Terminal Type | Screw Terminals |
Rated Operational Current AC-12 (Ie) | (230 V) 4 A | Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
Rated Operational Current DC-12 (Ie) | (24 V) 4 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 400 V |
Degree of Protection | Housing IP50 Terminals IP20 | Overvoltage Category | III |
Pollution Degree | 3 | Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 10 A Output Circuit NO - F Type Fuses 10 A |
Connecting Capacity | Flexible with Ferrule 2x 0.75 ... 1.5 mm² Flexible 2x 1 ... 1.5 mm² Rigid 2x 0.75 ... 1.5 mm² | Tightening Torque | 0.6 ... 0.8 N·m |
Wire Stripping Length | 10 mm | Mounting Position | 1 ... 6 |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 |
Maximum Operating Voltage UL/CSA | Output Circuit 250 V AC | Contact Rating UL/CSA | B300 |
Connecting Capacity UL/CSA | Flexible with Ferrule 2x 18-16 AWG Flexible 2x 18-16 AWG Rigid 2x 18-16 AWG | Tightening Torque UL/CSA | 7.08 in·lb |
Pilot Duty UL/CSA | B300 | Ambient Air Temperature | Operation -20 ... +60 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | B |
ETIM 7 | EC001441 - Phase monitoring relay | ETIM 8 | EC001441 - Phase monitoring relay |
ETIM 9 | EC001441 - Phase monitoring relay | eClass | V11.0 : 27371803 |
UNSPSC | 39122332 | E-Number (Finland) | 2712854 |
E-Number (Norway) | 4187169 | Manufacturer ID | 1SVR550882R9500 |
Specifications may be subject to change without notice
