Product Model

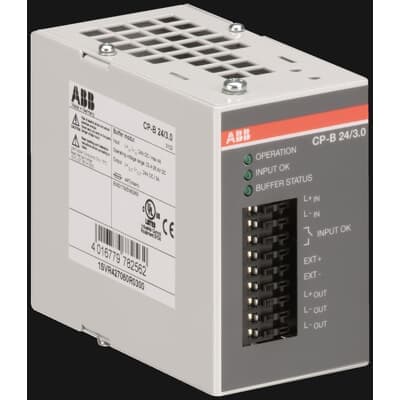

CP-B 24/3.0
Selling Points
- 1Efficient Energy Storage: The CP-B 24/3.0 buffer module provides 1000 Ws of energy storage for stable power supply.
- 2Compact Design: With dimensions of 99 mm x 60 mm x 120 mm, it fits seamlessly into modern automation systems.
- 3Robust Protection: Equipped with IP20 housing and terminals for reliable operation in various environments.
- 4Wide Temperature Range: Operates between -40°C to +60°C, ensuring performance in diverse temperature conditions.
- 5Compliance with Standards: Meets IEC/EN 60950-1, EN 50178, IEC/EN 62040-2, and other international standards for safety and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 60 mm | Product Net Height | 100 mm |
Product Net Depth / Length | 126.2 mm | Product Net Weight | 0.594 kg |
Function | Buffer module | Number of Phases | 1 |
Input Voltage (Uin) | 24 V DC | Rated Frequency (f) | DC |
Output Power | 69 W | Output Voltage (Uout) | 24 V DC |
Output Current | 3 A | Degree of Protection | Housing IP20 Terminals IP20 |
Pollution Degree | 2 | Connecting Capacity Input Circuit | Flexible with Ferrule 0.08 ... 1.0 mm² Flexible 0.08 ... 1.0 mm² Rigid 0.08 ... 1.5 mm² |
Connecting Capacity Output Circuit | Flexible with Ferrule 0.08 ... 1.0 mm² Flexible 0.08 ... 1.0 mm² Rigid 0.08 ... 1.5 mm² | Wire Stripping Length | Input Circuit 6 mm Output Circuit 6 mm |
Minimum Mounting Distance | Other Device Same Type, Vertical 40 mm | Mounting Position | 1 |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.107.1 IEC/EN 63000 EN 55011 IEC/EN 61000-6-2 IEC/EN 61000-6-4 IEC/EN 62040-2 UL 508 |
Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 28-18 AWG Flexible 28-18 AWG Rigid 28-16 AWG | Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 28-18 AWG Flexible 28-18 AWG Rigid 28-16 AWG |
Ambient Air Temperature | Operation -40 ... +60 °C Storage -40 ... +60 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | C | ETIM 7 | EC002540 - DC-power supply |
ETIM 8 | EC002540 - DC-power supply | ETIM 9 | EC002540 - DC-power supply |
eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
E-Number (Finland) | 2712387 | E-Number (Norway) | 6609480 |
Manufacturer ID | 1SVR427060R0300 |
