Product Model

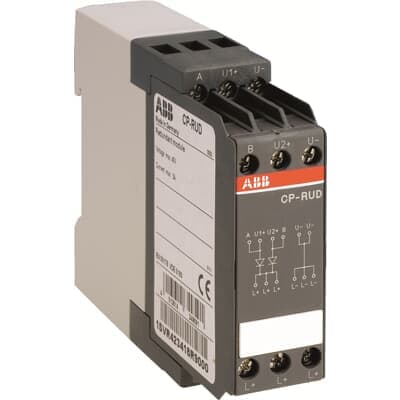

CP-RUD
Selling Points
- 1Provides automatic redundant power supply operation for critical applications.
- 2Decouples two CP-E power supply units < 48 V.
- 3Features 2 inputs each up to 2.5 A and 1 output up to 5 A.
- 4Designed with a compact plastic enclosure and DIN rail mounting.
- 5Offers high reliability with IP20 protection for the enclosure and terminals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 22.5 mm | Product Net Height | 78 mm |
Product Net Depth / Length | 100 mm | Product Net Weight | 0.118 kg |
Function | Redundancy unit | Input Voltage (Uin) | 5 ... 35 V DC |
Output Voltage (Uout) | 24 V DC | Output Current | 5 A |
Degree of Protection | Housing IP20 Terminals IP20 | Standards | IEC 60950-1 |
Ambient Air Temperature | Operation -20 ... +60 °C Storage -40 ... +85 °C | Object Classification Code | T |
ETIM 7 | EC002540 - DC-power supply | ETIM 8 | EC002540 - DC-power supply |
ETIM 9 | EC002540 - DC-power supply | eClass | V11.0 : 27040701 |
UNSPSC | 39121004 | Manufacturer ID | 1SVR423418R9000 |
Specifications may be subject to change without notice
