Product Model

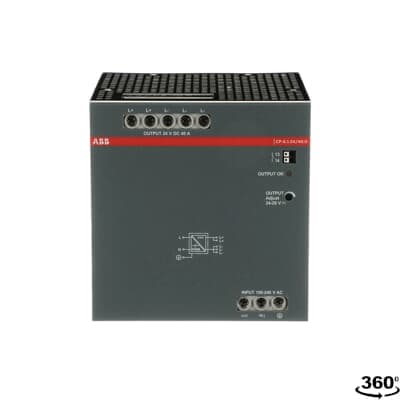

CP-S.1 24/40.0
Selling Points
- 1Adjustable output voltage from 24 to 28 V DC.
- 2High efficiency of up to 94% with low power dissipation.
- 3Robust construction with metal enclosure and integrated input fuse.
- 4Power reserve of up to 150% for 5 seconds for heavy load start-up.
- 5Extensive approvals including marine and worldwide certifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 125 mm | Product Net Height | 129.4 mm |
Product Net Depth / Length | 127 mm | Product Net Weight | 2.49 kg |
Function | Switch mode power supply | Number of Phases | 1 |
Rated Input Voltage (UIN) | 110 ... 240 V AC 110 ... 250 V DC | Input Voltage (Uin) | 99 ... 264 V AC 99 ... 277 V DC |
Typical Input Current | (115 V AC) 9.5 A (230 V AC) 5 A | Hold-up Time | (230 V AC) min. 20 ms |
Rated Frequency (f) | 50 / 60 Hz DC | Rated Frequency Limits | 45 ... 65 Hz |
Characteristic of Output | U/I characteristic curve with power reserve | Output Power | 960 W |
Rated Output Voltage | 24 V DC | Output Voltage (Uout) | 24 V DC |
Output Current | 40 A | Output Current Maximum (Iout) | 60 A |
Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV Input Circuit / PE 4 kV Input Circuit / Relay Contact 4 kV Output Circuit / PE 0.8 kV Output Circuit 0.8 kV | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V Input Circuit / PE 300 V Input Circuit / Relay Contact 300 V Output Circuit / PE 50 V |
Degree of Protection | Housing IP20 Terminals IP20 | Pollution Degree | 2 |
Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 10.0 mm² Flexible 0.5 ... 10.0 mm² Rigid 0.5 ... 10.0 mm² | Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 ... 10 mm² Flexible 0.5 ... 10.0 mm² Rigid 0.5 ... 10.0 mm² |
Tightening Torque | 2.8 N·m Input Circuit 1.47 N·m Output Circuit 1.47 N·m | Wire Stripping Length | Auxiliary Circuit 7 mm Input Circuit 10 mm Output Circuit 10 mm |
Minimum Mounting Distance | Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 50 mm | Mounting Position | 1 |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-8 AWG Flexible 20-8 AWG Rigid 20-8 AWG |
Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 20-8 AWG Flexible 20-8 AWG Rigid 20-8 AWG | Tightening Torque UL/CSA | Input Circuit 13 in·lb Output Circuit 13 in·lb |
Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | 5000 m |
Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles | Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms |
Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | Object Classification Code | T |
ETIM 7 | EC002540 - DC-power supply | ETIM 8 | EC002540 - DC-power supply |
ETIM 9 | EC002540 - DC-power supply | eClass | V11.0 : 27040701 |
UNSPSC | 39121004 | E-Number (Finland) | 2712890 |
E-Number (Norway) | 6608904 | E-Number (Sweden) | 5213658 |
Manufacturer ID | 1SVR320861R1000 |
Specifications may be subject to change without notice
