Product Model

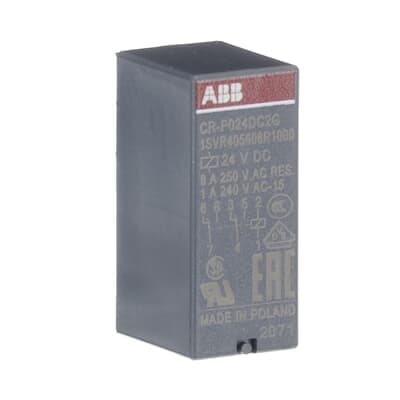

CR-P024DC2G
Selling Points
- 1The CR-P024DC2G measures 12.7 mm in width, 15.7 mm in height, and 29 mm in length, making it perfect for space-saving control panels.
- 2Equipped with gold-plated contacts, this relay ensures reliable switching operations even in low-load applications.
- 3Designed for direct mounting on printed circuit boards (PCBs) or use with ABB's sockets, offering flexibility in installation.
- 4Offers complete protection against dust, airborne particles, and water immersion up to one meter, ensuring durability in harsh environments.
- 5Operates with a 24 V DC rated control supply voltage and can handle switched voltages up to 250 V AC/DC, making it suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 12.7 mm | Product Net Height | 15.7 mm |
Product Net Depth / Length | 29 mm | Product Net Weight | 0.014 kg |
Function | Pluggable pcb interface relay CR-P | Sub-Function | Relay with gold-plated contacts |
Rated Control Supply Voltage (Us) | 24 V DC | Rated Operational Voltage | 400 V AC |
Output | 2 c/o (SPDT) contacts | Output Signal | 250 V / 8 A |
Terminal Type | Soldering Pins | Rated Operational Current AC-12 (Ie) | (230 V) 8 A |
Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 8 A |
Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 400 V |
Degree of Protection | IP67 | Mounting Position | 1 |
Standards | IEC/EN 61810-1 | Maximum Operating Voltage UL/CSA | 300 V AC |
Contact Rating UL/CSA | B300 | Pilot Duty UL/CSA | B300 |
Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +85 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
UNSPSC | 39122331 | E-Number (Norway) | 4187726 |
Manufacturer ID | 1SVR405606R1000 |
