Product Model

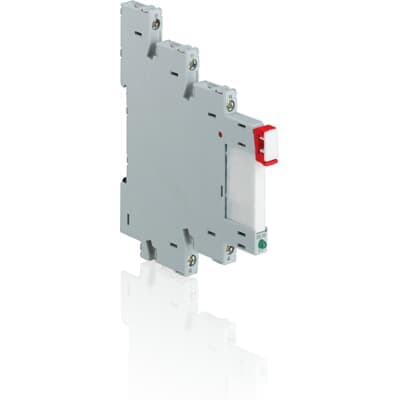

CR-S230VADC1CRGS
Selling Points
- 1DIN Rail Mounting: Easily integrate into industrial control systems.
- 2230V AC/DC Coil: Compatible with both AC and DC power sources.
- 3SPDT Configuration: Single-pole double-throw contact configuration for precise switching.
- 46A Load Current Rating: Handles up to 6A of load current.
- 5Gold-Plated Contacts: Ensures reliable and long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 6.3 mm | Product Net Height | 76.4 mm |
Product Net Depth / Length | 88.5 mm | Product Net Weight | 0.03 kg |
Function | Fully assembled interface relay CR-S | Sub-Function | Relay with gold-plated contacts |
Rated Control Supply Voltage (Us) | 230 V AC/DC | Output | 1 c/o (SPDT) contact |
Output Signal | 250 V / 6 A | Terminal Type | Screw Terminals |
Rated Operational Current AC-12 (Ie) | (230 V) 6 A | Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
Rated Operational Current DC-13 (Ie) | (24 V) 1 A | Degree of Protection | Terminals IP20 |
Connecting Capacity | Flexible 2.5 mm² Rigid 2.5 mm² | Tightening Torque | 0.5 N·m |
Wire Stripping Length | 7 mm | Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 IEC/EN 61984 UL 508 | Connecting Capacity UL/CSA | Flexible 14 AWG Rigid 14 AWG |
Tightening Torque UL/CSA | 4.42 in·lb | Ambient Air Temperature | Operation -40 ... +55 °C Storage 0 ... +40 °C |
Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
E-Number (Finland) | 2712379 | E-Number (Sweden) | 4001409 |
Manufacturer ID | 1SVR405541R7120 |
