Product Model

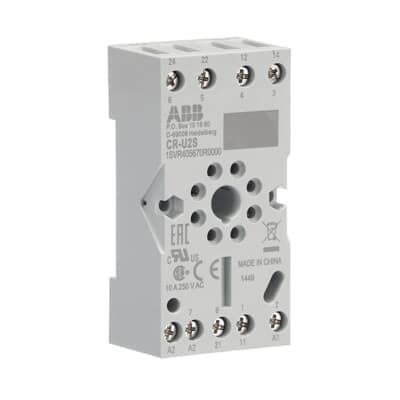

CR-U2S
Selling Points
- 1Universal Compatibility: Compatible with CR-U relays with 2 c/o (SPDT) output contacts.
- 2Screw Terminals: Easy installation with screw connection terminals.
- 3High Reliability: Overload-proof against short-time variations in current or voltage peaks.
- 4Mechanical Status Indication: Standard universal relays with mechanical status indication.
- 5Accessories Available: Pluggable function modules, holder, and marker available as accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 38 mm | Product Net Height | 26 mm |
Product Net Depth / Length | 75 mm | Product Net Weight | 0.065 kg |
Function | Accessory for interface relays CR-U | Sub-Function | Socket for universal relays |
Sub-Function 2 | Socket for universal relay 2 c/o and module | Rated Operational Voltage | 250 V |
Output | none | Terminal Type | Screw Terminals |
Rated Operational Current AC-12 (Ie) | (230 V) 10 A | Rated Insulation Voltage (Ui) | 2 V |
Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG | Flammability According to UL94 | V-0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
E-Number (Finland) | 2712799 | E-Number (Norway) | 4187494 |
E-Number (Sweden) | 4005435 | Manufacturer ID | 1SVR405670R0000 |
Specifications may be subject to change without notice
