Product Model

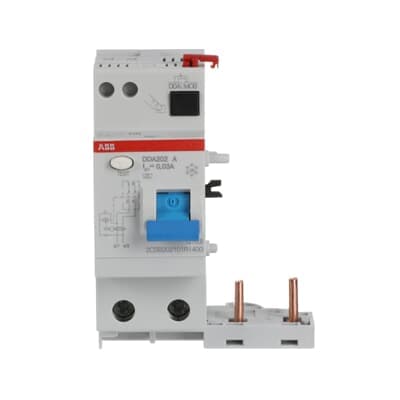

DDA202 A-40/0.03
Selling Points
- 1Advanced Earth Fault Protection: Provides instantaneous protection against sinusoidal alternating and direct pulsating earth fault currents.
- 2Compact Design: Suitable for 110V applications with a compact size, measuring 70 mm in width and 93 mm in height.
- 3High Sensitivity: Trips at 30 mA, ensuring early detection of potential electrical hazards.
- 4Versatile Compatibility: Compatible with MCBs S200 series and S300P, making it versatile for various electrical systems.
- 5Compliance with International Standards: Meets IEC 61009 Ann. G standards, ensuring compliance with global safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type A |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 V |
Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Current (In) | 40 A | Rated Residual Current | 30 mA |
Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 3.2 W | Power Supply Connection | Arbitrary |
Electrical Endurance | 10000 cycle | Number of Poles | 2 |
Operating Characteristic | Instantaneous | Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² |
Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
Degree of Protection | IP2X | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A | Product Net Width | 70 mm |
Product Net Height | 93 mm | Product Net Depth / Length | 76 mm |
Product Net Weight | 210 g | Dimension Diagram | 9AKK106930A3984 |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB202101R1400 |
Specifications may be subject to change without notice
