Product Model

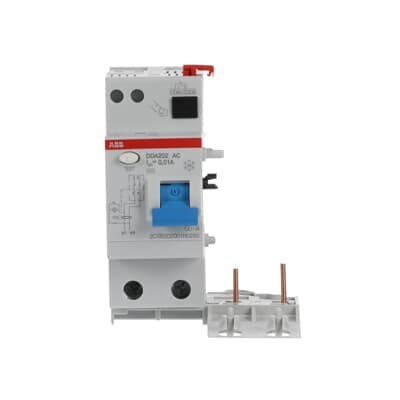

DDA202 AC-25/0.01
Selling Points
- 1Advanced Earth Fault Protection: Safeguards against sinusoidal alternating earth fault currents.
- 2High Sensitivity: Trips at 10 mA, ensuring quick response to potential hazards.
- 3Versatile Compatibility: Compatible with MCBs S200 series and S300P for seamless integration.
- 4Robust Design: Withstands ambient temperatures from -25°C to 55°C and meets IP2X protection standards.
- 5Compliance with Standards: Meets IEC/EN 61009 Ann. G and EU Directive 2011/65/EU for RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type AC |
Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 V |
Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
Rated Current (In) | 25 A | Rated Residual Current | 10 mA |
Leakage Current Type | AC | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 2 W | Power Supply Connection | Arbitrary |
Electrical Endurance | 10000 cycle | Number of Poles | 2 |
Operating Characteristic | Instantaneous | Options Provided | - |
Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² | Ambient Temperature | -25...55 °C |
Ambient Air Temperature | Operation -25...55 °C | Degree of Protection | IP2X |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Environmental Information | Refer to RoHS | Short-Circuit Current Rating (SCCR) | 0.01 ... 0.01 A |
Product Net Width | 70 mm | Product Net Height | 93 mm |
Product Net Depth / Length | 76 mm | Product Net Weight | 210 g |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB202001R0250 |
Specifications may be subject to change without notice
