Product Model

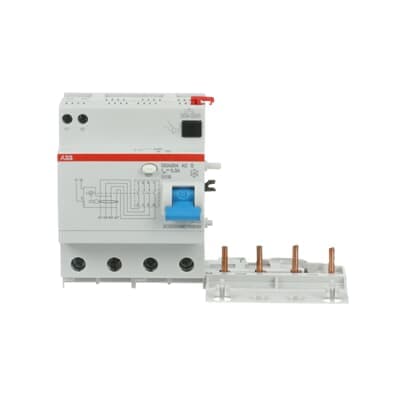

DDA204 AC S-63/0.3
Selling Points
- 1Advanced Earth Fault Protection: Safeguards against sinusoidal alternating earth fault currents and indirect contacts.
- 2Compact Design: Ideal for residential, commercial, and industrial applications with a slim profile.
- 3High Sensitivity: Detects earth faults with a sensitivity of 0.3 A, ensuring quick intervention.
- 4Compliance with Standards: Meets IEC/EN 61009 standards for reliability and safety.
- 5Reliable Operation: Operates at ambient temperatures from -25°C to +55°C, ensuring consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | EN 61009 Ann. G | Type of Residual Current | Type AC |
Rated Operational Voltage | 230/400 V | Rated Current (In) | 63 A |
Rated Residual Current | 300 mA | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 7.6 W | Number of Poles | 4 |
Operating Characteristic | Selective | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
Resistance to Shock acc. to IEC 60068-2-27 | 25g / 2 shocks / 13 ms | Environmental Information | document not needed |
Product Net Width | 140 mm | Product Net Height | 93 mm |
Product Net Depth / Length | 76 mm | Product Net Weight | 0.290 kg |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB204901R3630 |
Specifications may be subject to change without notice
