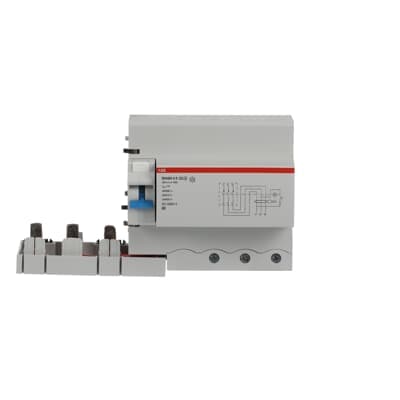

Product Model
DDA803 A S-100/1
Selling Points
- 1Advanced Earth Fault Protection: Safeguards people and installations against fault currents to earth.
- 2Selective AC and A Types: Offers standard instantaneous and selective AC and A types configurations.
- 3Intentional Tripping Delay: Realizes selectivity with downstream instantaneous devices.
- 4Durable Design: Meets IEC/EN 60947-2 standards for robust performance.
- 5Easy Installation: Compatible with MCBs S800 series up to 100 A, ensuring seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type A |
Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 400 V AC 415 V AC 690 V AC |
Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 100 A |
Rated Residual Current | 1000 mA | Maximum Surge Current | 5 kA |
Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
Power Loss | 10.5 W | Number of Poles | 3 |
Operating Characteristic | Selective | Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² |
Ambient Temperature | -25...60 °C | Ambient Air Temperature | Operation -25...60 °C |
Degree of Protection | IP2X | Environmental Information | refer to RoHS information |
Short-Circuit Current Rating (SCCR) | 1...1 A | Width in Number of Modular Spacings | 6.5 |
Product Net Width | 117 mm | Product Net Height | 108.2 mm |
Product Net Depth / Length | 82.3 mm | Product Net Weight | 400 g |
ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 85363030 | eClass | V11.0 : 27142210 |
Object Classification Code | F | Manufacturer ID | 2CSB803201R5000 |
Specifications may be subject to change without notice
