Product Model

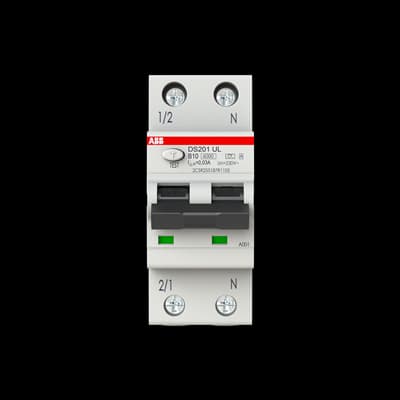

DS201 B10 A30 UL
Selling Points
- 1Advanced Overcurrent Protection: Safeguards against overload and short-circuit currents.
- 2Earth Fault Protection: Provides comprehensive protection against sinusoidal alternating and direct pulsating earth fault currents.
- 3High Sensitivity: Detects residual currents as low as 30 mA for enhanced safety.
- 4Durable Design: Meets IEC 61009-1 standards with a high electrical endurance of 20,000 cycles.
- 5Easy Installation: Compatible with DIN rail mounting for straightforward integration into your electrical system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC 61009-1 IEC 61009-2-1 UL 1053 UL 1077 CSA C22.2 N0. 235 | Tripping Characteristic | B |
Type of Residual Current | Type A | Rated Operational Voltage | acc. to IEC 60898-1 240 V |
Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V | Test Voltage (Ut) | 110â¦277 V |
Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2 kV |
Rated Current Sensitivity | 0.03 A | Rated Current (In) | 10 A |
Rated Residual Current | 30 mA | Rated Short-Circuit Capacity | 6 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 6 kA | Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA |
Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | Average per Pole 1.2 W Phase Pole 1.8 W Neutral Pole 0.5 W Total 2.3 W |
Power Supply Connection | Arbitrary | Contact Position Indication | Red ON / Green OFF |
Energy Limiting Class | 3 | Electrical Endurance | 10000 cycle |
Mechanical Endurance | 20000 cycle | Number of Protected Poles | 1 |
Number of Poles | 2 | Number of Modular Spacings per DIN Rail | 2 |
Fault Indication | Blue flag on toggle | Operating Characteristic | Instantaneous |
Overvoltage Category | III | Position of Neutral Terminals | Right |
Tightening Torque | 2.8 N·m | Accessory Type | Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device |
Mounting Type | DIN-Rail | Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
Mounting Position | Any | Accessories Available | Yes |
Connecting Capacity | Busbar 10 ... 10 mm² Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² | Wire Stripping Length | 12 mm |
Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25 ⦠55 °C |
Reference Ambient Air Temperature | 30 °C | Degree of Protection | IP20 IP40 |
Pollution Degree | 2 | Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Width in Number of Modular Spacings | 2 | Product Net Width | 35 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 69 mm |
Product Net Weight | 200 g | Built-In Depth (t2) | 69 mm |
ETIM 8 | EC000905 - Earth leakage circuit breaker | ETIM 9 | EC000905 - Earth leakage circuit breaker |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85363010 | eClass | V11.0 : 27142207 |
Object Classification Code | Q | Manufacturer ID | 2CSR255187R1105 |
Specifications may be subject to change without notice
