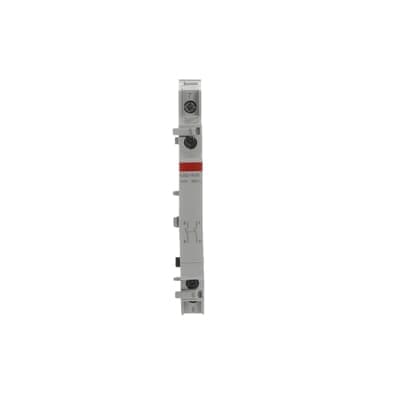

Product Model
E292-16-20
Selling Points
- 1Efficient Lighting Control: Realize simple, energy-saving, and efficient lighting control systems with the E292-16-20 latching relay module.
- 2Versatile Applications: Suitable for private houses, factory premises, commercial and public buildings, and industrial plants.
- 3Reliable Interlock: Achieve safe and reliable interlock with each pulse applied to the magnetic coil system.
- 4Durable Design: Designed for rated currents 16 and 32A, ensuring reliable operation in various environments.
- 5Comprehensive Accessories: Combinable accessories allow the main modules to be used in nearly all market applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 | Function | Mechanical latching relay main contact module |
Rated Voltage (Ur) | 250 V AC | Rated Control Supply Voltage (Us) | 250 V AC |
Rated Current (In) | 16 A | Maximum Control Current DC | 8 A |
Rated Frequency (f) | 50 Hz | Minimum Switching Capacity | 24 V 10 mA |
Power Loss | 0.64 W | Number of Contacts NO | 2 |
Number of Main Contacts NC | 0 | Number of Main Contacts NO | 2 |
Number of Auxiliary Contacts NO | 2 | Tightening Torque | 1.2 - 1.5 N·m |
Accessory Type | Connecting bridge | Contact Type | Normally Open (NO) |
Mounting Type | DIN-Rail | RAL Number | RAL 7035 - Light Grey |
Color | Grey | Connecting Capacity | Solid 1 x 1 ... 10 mm² Flexible 2 x 2.5 mm² Flexible with Cable End 1 x 0.75 ... 6 mm² Flexible with Cable Lug 1 x 0.75 ... 6 mm² |
Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Environmental Information | 2CCC441012D0202 |
Climate Class Reference Standard | IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen. IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens | Product Net Width | 9 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 58 mm |
Product Net Weight | 45 g | Dimension Diagram | 9AKK107992A6182 |
ETIM 8 | EC000188 - Latching relay | ETIM 9 | EC000188 - Latching relay |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85362020 | UNSPSC | 39122317 |
eClass | V11.0 : 27371692 | IDEA Granular Category Code (IGCC) | 5351 >> Latching relay |
Object Classification Code | K | Manufacturer ID | 2CCA704300R0001 |
Specifications may be subject to change without notice
