Product Model

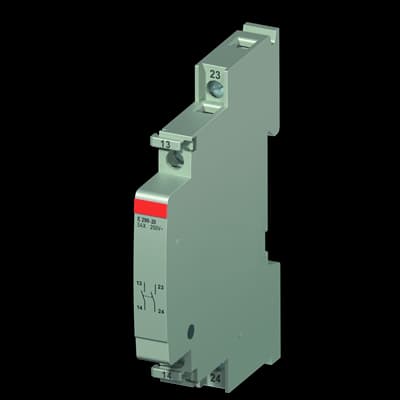

E299-20
Selling Points
- 1Designed with robust construction for consistent performance.
- 2Suitable for 5A current rating, ensuring reliable switching.
- 3Easy installation on DIN rail systems for space-saving designs.
- 4Ideal for industrial control systems requiring auxiliary contacts.
- 5Compatible with various relay systems, enhancing system integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Standards | IEC/EN 60669-1 IEC/EN 60669-2-2 | Function | Auxiliary Contact |
Rated Voltage (Ur) | 250 V AC | Maximum Control Current DC | 5 A |
Rated Frequency (f) | 50 Hz | Minimum Switching Capacity | 24 V 10 mA |
Power Loss | 0.1 W | Number of Contacts NO | 2 |
Number of Main Contacts NC | 0 | Number of Main Contacts NO | 0 |
Number of Auxiliary Contacts NO | 2 | Tightening Torque | 1.2 - 1.5 N·m |
Accessory Type | Other | Mounting Type | DIN-Rail |
RAL Number | RAL 7035 - Light Grey | Color | Grey |
Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Product Net Width | 18 mm |
Product Net Height | 85 mm | Product Net Depth / Length | 58 mm |
Product Net Weight | 45 g | Dimension Diagram | 9AKK107992A6182 |
ETIM 8 | EC001652 - Installation relay | ETIM 9 | EC001652 - Installation relay |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
CN8 | 85362020 | eClass | V11.0 : 27371692 |
Manufacturer ID | 2CCA704341R0001 |
Specifications may be subject to change without notice
