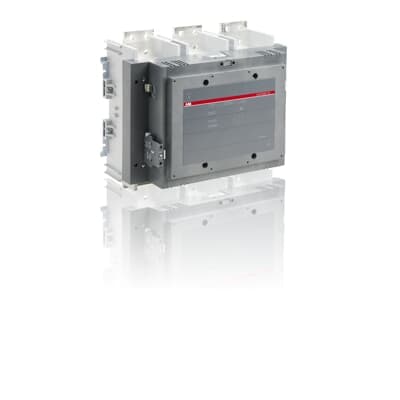

Product Model
GAF2050-10-11 48-130V DC
Selling Points
- 1High-Voltage Capability: Suitable for up to 1000 V DC applications.
- 2Versatile Operation: Operates with 48-130 V, 50Hz/60Hz, and DC.
- 3Compact Design: Compact dimensions (555 mm x 365 mm x 500 mm) for easy installation.
- 4Reliable Performance: Built-in surge suppression ensures reliable operation.
- 5Wide Compatibility: Compatible with AF contactors and PLC interfaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 438 mm | Product Net Depth / Length | 244 mm |
Product Net Height | 392 mm | Product Net Weight | 33 kg |
Number of Main Contacts NO | 1 | Number of Main Contacts NC | 0 |
Number of Auxiliary Contacts NO | 1 | Number of Auxiliary Contacts NC | 1 |
Rated Operational Voltage | Main Circuit 1000 V DC | Rated Control Circuit Voltage (Uc) | 50 Hz 48 ... 130 V 60 Hz 48...130 V DC Operation 48...130 V |
Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A Holding at Max. Rated Control Circuit Voltage DC 16 W Pull-in at Max. Rated Control Circuit Voltage 50 Hz 1900 V·A Pull-in at Max. Rated Control Circuit Voltage 60 Hz 1900 V·A Pull-in at Max. Rated Control Circuit Voltage DC 1700 V·A | Terminal Type | Main Circuit: Bars |
Object Classification Code | Q | ETIM 7 | EC002552 - Power contactor, DC switching |
ETIM 8 | EC002552 - Power contactor, DC switching | ETIM 9 | EC002552 - Power contactor, DC switching |
eClass | V11.0 : 27371018 | UNSPSC | 39121529 |
IDEA Granular Category Code (IGCC) | 4763 >> Power contactor, DC switching | Manufacturer ID | 1SFL707025R6911 |
Specifications may be subject to change without notice
