Product Model

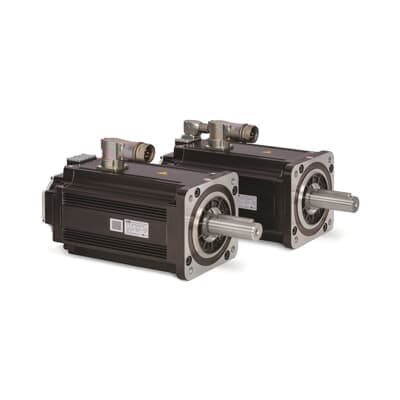

HDS240F-9320BD3KNS
Selling Points
- 1The HDS240F-9320BD3KNS servo motor delivers a rated torque of 93 N·m, ideal for demanding applications.
- 2Designed with low inertia, this motor enhances system responsiveness and efficiency.
- 3Equipped with various high-performance and high-resolution feedback options for precise control.
- 4Rated speed of 2000 r/min, suitable for a variety of industrial applications.
- 5Built with robust components, ensuring reliable operation under various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
ABB Type Designation | HDS240F-9320BD3KNS | CN8 | 85044088 |
Country of Origin | China (CN) | Customs Tariff Number | 8501520000 |
Degree of Protection | IP65 | Flange Size Range | 240 mm |
Frame Size | A | Global Commercial Alias | HDS240F-9320BD3KNS |
Gross Weight | 93 kg | Input Voltage (Uin) | 400 V |
Invoice Description | HDS series motor, 400 VAC, flange size 240 mm, low inertia, fan-cooled, 20 kW, single-turn Hiperface, key, no brake, seal | Made To Order | No |
Maximum Peak Current | 150 A | Maximum Peak Torque | 279 N·m |
Maximum Speed | 2700 r/min | Minimum Order Quantity | 1 piece |
Motor Power AC-3 | 20 kW | Number of Phases | 3 |
Order Multiple | 1 piece | Package Level 1 Depth / Length | 802 mm |
Package Level 1 Height | 555 mm | Package Level 1 Units | 1 carton |
Package Level 1 Width | 354 mm | Product Name | HDS motor |
Product Net Depth / Length | 678 mm | Product Net Height | 290 mm |
Product Net Weight | 78 kg | Product Net Width | 248 mm |
Product Type | HDS_servo_motor | Quote Only | No |
Rated Output Current | 39 A | Rated Speed | 2000 r/min |
Rated Torque | 93 N·m | Replaced Product ID (OLD) | 3ABD00024309 |
Selling Unit of Measure | piece | Shaft Diameter | 42 mm |
Shaft Length | 110 mm | Short Description | HDS series motor, 400 VAC, flange size 240 mm, low inerita, fan-cooled, 20 kW, single-turn Hiperface, key, no brake, seal |
Stocked At (Warehouses) | Zhengzhou, China Beijing, China Shanghai, China Beijing, China | Two Speed Motor | No |
UNSPSC | 26101109 | WEEE B2C / B2B | Business To Business |
WEEE Category | Product Not in WEEE Scope | Manufacturer ID | 3ABD00049647 |
Specifications may be subject to change without notice
