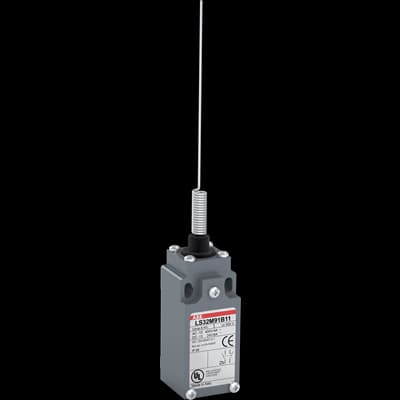

Product Model
LS35M91B11
Selling Points
- 1Durable Zinc Alloy Construction: Made from high-quality zinc alloy (Zamak) for long-lasting performance.
- 2Multidirectional Actuator: Equipped with a multidirectional stainless steel spring actuator for versatile operation.
- 3Snap Action Contacts: Includes 1 N.O + 1 N.C snap action (Zb type) contacts for precise electrical switching.
- 4Easy Installation: Features 2 mounting holes at the top and 1 1/2'' NPT cable entry on the bottom for straightforward installation.
- 5Reliable Performance: Designed to withstand strong currents and electromagnetic disturbances, ensuring consistent operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 30 mm | Product Net Height | 194 mm |
Product Net Depth / Length | 33 mm | Product Net Weight | 0.169 kg |
Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous | Actuator Type | multidirectional stainless steel spring with rigid end |
B10d Value | Operations 30 Millions | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A |
Degree of Protection | acc. to IEC 60529 IP66 | Housing Material | Metal |
Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour | Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
Mechanical Durability | >5 million | Mounting Type | 30 mm (EN 50047) |
Number and Type of Bottom Cable Glands | 1 x 1/2'' NPT - Bottom | Pilot Duty UL/CSA | A600 Q600 |
Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A (400 V) NC 4 (24 V) 10 A (130 V) 5.5 A (240 V) 3 A |
Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V acc. to UL/CSA 600 V | Rated Operational Current DC-13 (Ie) | (24 V) 6 A (110 V) 0.6 A (125 V) 0.55 A (250 V) 0.4 A |
Short-Circuit Protective Devices | gG Type Fuses 10 A | Ambient Air Temperature | Operation -25 ... +70 °C Storage -30 ... +80 °C |
Object Classification Code | B | ETIM 6 | EC000030 - End switch |
ETIM 7 | EC000030 - End switch | ETIM 8 | EC000030 - End switch |
eClass | V11.0 : 27272601 | UNSPSC | 39122213 |
IDEA Granular Category Code (IGCC) | 5202 >> Limit switch | Manufacturer ID | 1SBV013791R1211 |
Specifications may be subject to change without notice
