ABBTravel switch
Product Model

LS43M42B11

Manufacturer

ABB

Category

Travel switch

Product ID

76006

In Stock
Last updated: 2025/4/28
View Specifications

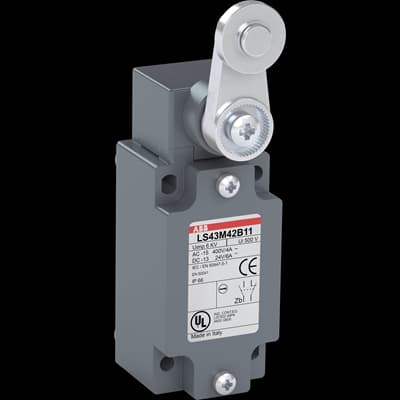

ABB LS43M42B11

Selling Points

  • 1Zinc Alloy Construction: Made from durable zinc alloy (Zamak) for enhanced strength and resistance.
  • 2Snap Action Contacts: Equipped with 1 N.O + 1 N.C snap action (Zb type) contacts for reliable switching.
  • 3Robust Mechanical Durability: Designed to withstand 3600 cycles per hour, ensuring long-lasting performance.
  • 4IP66 Degree of Protection: Compliant with IEC 60529, providing excellent protection against dust and water.
  • 5Wide Operating Temperature Range: Operates between -25°C to +70°C, suitable for various industrial environments.
Product Details
LS43M42B11
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
40 mm
Product Net Height
133 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.279 kg
Action Type of the Contact Element (acc. to IEC 60947-5-1)
Snap Action Simultaneous
Actuator Type
steel roller lever (Ø22 mm)
B10d Value
Operations 50 Millions
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Degree of Protection
acc. to IEC 60529 IP66
Housing Material
Metal
Maximum Electrical Switching Frequency
(AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour
Maximum Mounted Auxiliary Contacts
1 NO, 1 NC
Mechanical Durability
25 million
Mounting Type
40 mm (EN 50041)
Number and Type of Bottom Cable Glands
1 x M20x1.5 - Bottom
Pilot Duty UL/CSA
A600 Q600
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Operational Current AC-15 (Ie)
(230 V AC) 3.1 A (400 V) NC 4 (24 V) 10 A (130 V) 5.5 A (240 V) 3 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V acc. to UL/CSA 600 V
Rated Operational Current DC-13 (Ie)
(24 V) 6 A (110 V) 0.6 A (125 V) 0.55 A (250 V) 0.4 A
Short-Circuit Protective Devices
gG Type Fuses 10 A
Ambient Air Temperature
Operation -25 ... +70 °C Storage -30 ... +80 °C
Object Classification Code
B
ETIM 6
EC000030 - End switch
ETIM 7
EC000030 - End switch
ETIM 8
EC000030 - End switch
eClass
V11.0 : 27272601
UNSPSC
39121500
Manufacturer ID
1SBV011642R1211

Specifications may be subject to change without notice
