Product Model

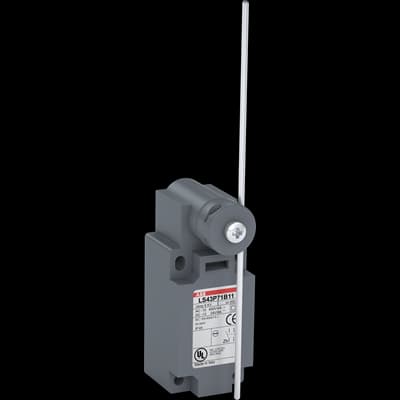

LS43P71B11
Selling Points
- 1High-Quality Material: Made from fiber-glass reinforced UL-V0 material for durability and safety.
- 2Adjustable Rod Lever: Features an adjustable stainless steel rod lever (Ø3 mm) for precise actuation.
- 3Compact Design: 40 mm wide, standard reinforced design with 4 mounting holes at the top and bottom.
- 4Reliable Contacts: Includes 1 N.O + 1 N.C snap action (Zb type) contacts for reliable switching.
- 5IP65 Protection: Meets IP65 protection standards, ensuring operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 41 mm | Product Net Height | 195 mm |
Product Net Depth / Length | 41 mm | Product Net Weight | 0.156 kg |
Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous | Actuator Type | adjustable stainless steel rod lever (Ã3 mm) |
B10d Value | Operations 50 Millions | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 10 A |
Degree of Protection | acc. to IEC 60529 IP65 | Housing Material | Plastic |
Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour (DC-13) 3600 cycles per hour | Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
Mechanical Durability | 10 million | Mounting Type | 40 mm (EN 50041) |
Number and Type of Bottom Cable Glands | 1 x M20x1.5 - Bottom | Pilot Duty UL/CSA | A600 Q600 |
Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A (400 V) NC 4 (24 V) 10 A (130 V) 5.5 A (240 V) 3 A |
Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V acc. to UL/CSA 600 V | Rated Operational Current DC-13 (Ie) | (24 V) 6 A (110 V) 0.6 A (125 V) 0.55 A (250 V) 0.4 A |
Short-Circuit Protective Devices | gG Type Fuses 10 A | Ambient Air Temperature | Operation -25 ... +70 °C Storage -30 ... +80 °C |
Object Classification Code | B | ETIM 6 | EC000030 - End switch |
ETIM 7 | EC000030 - End switch | ETIM 8 | EC000030 - End switch |
eClass | V11.0 : 27272601 | UNSPSC | 39121500 |
Manufacturer ID | 1SBV010771R1211 |
Specifications may be subject to change without notice
