Product Model

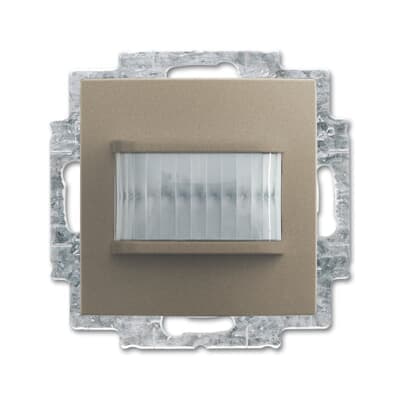

MSA-F-1.1.1-93
Selling Points
- 1Advanced Detection Technology: Equipped with select lenses for precise and reliable operation.
- 2Automatic Switching: Switches ABB-free@home actuators based on movement and brightness.
- 3Programmable Delay: Switch-off delay can be programmed via the web interface of the System Access Point.
- 4Integrated Switch Actuator: Includes an integrated switch actuator for seamless operation.
- 5Flush-Mounted Design: Compatible with flush-mounted boxes, ensuring a clean and discreet installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
Number of Outputs | 1 | Number of Channels | 1 |
Compatible Bus Systems | free@home (TP) | Product Range | free@home |
Minimum Switching Time | Switch-On 30 second [unit of time] | Number of Batteries | 0 |
Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° | Product Net Width | 70.9 mm |
Product Net Height | 52.6 mm | Product Net Depth / Length | 70.9 mm |
Product Net Weight | 0.16 kg | Built-In Depth (t2) | 32 mm |
ETIM 9 | EC001582 - Movement sensor for bus system | eClass | V11.0 : 27143144 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
Manufacturer ID | 2CKA006220A0667 |
Specifications may be subject to change without notice
