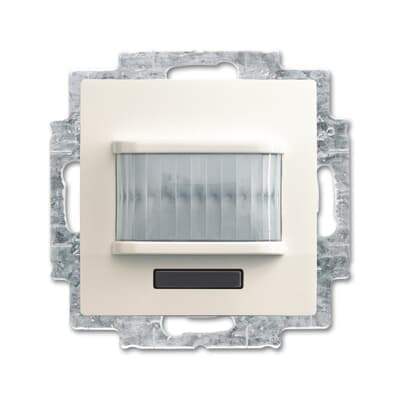

Product Model
MSA-F-1.1.1-96-WL
Selling Points
- 1Automatic Switching: Automatically switches ABB-free@home® actuators based on movement and brightness.
- 2Select Lens for Animal Access: Equipped with a select lens for detection with animal access.
- 3Programmable Switch-off Delay: Switch-off delay of the actuator can be programmed via the web interface of the System Access Point.
- 4Integrated Switch Actuator: Includes an integrated switch actuator for seamless operation.
- 5Flush-Mounted Installation: Designed for flush-mounted installation in plaster boxes, ensuring a sleek and secure fit.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
Data Sheet, Technical Information | 2CKA001473B9110 | Number of Outputs | 1 |
Number of Channels | 1 | Compatible Bus Systems | free@home wireless |
Product Range | free@home | Minimum Switching Time | Switch-On 30 second [unit of time] |
Battery Weight | 0 g | Sensor Detection Range | Horizontal 180...180 ° Vertical 19...19 ° |
Product Net Width | 70.9 mm | Product Net Height | 52.6 mm |
Product Net Depth / Length | 70.9 mm | Product Net Weight | 0.2 kg |
Built-In Depth (t2) | 32 mm | ETIM 9 | EC001582 - Movement sensor for bus system |
eClass | V11.0 : 27143144 | WEEE Category | Product Not in WEEE Scope |
Manufacturer ID | 2CKA006200A0091 |
Specifications may be subject to change without notice
